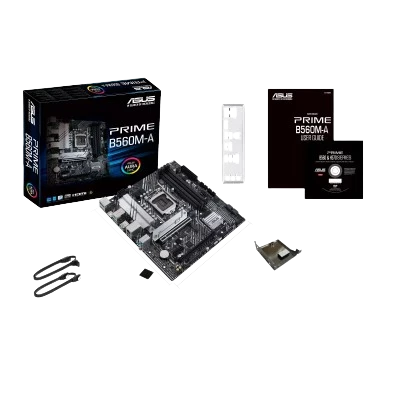

Asus PRIME B560M-A

Name: Asus PRIME B560M-A
SKU: TWMB25
Price: 10428.00 INR
Availability: OutOfStock

1 reviews | Write a review

Availability: OutOfStock

₹10428.00

About this item : Intel® B560 (LGA 1200), PCIe 4.0,two M.2 slots, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, dual HDMI, rear USB 3.2 Gen 2 Type-C®, V-M.2 Key E slot for Wi-Fi , Aura Sync, Addressable RGB, mATX motherboard

Product Code: TWMB25

Current Jc Qty: 0

Model : Asus PRIME B560M-A

Brand : Asus

Category : Mother Board

Ram Support : DDR4

Product Factor : mATX

Socket : LGA 1200

Chipset : B560

Wifi: N

Ram Slot: 4

Total Nvme Slot: 2

Available Options

Shipping Cost T&C Apply & 3 Days Return Window Available (T&C Apply)

EMI Options / Bank Transfer / Direct Upi Using QR Code. Note: (COD Unavailable)

Qty − +

ASUS PRIME B560M-A

LGA 1200 Intel B560 Sata 6gb/S Micro Atx Intel Motherboard Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B560M-A provides daily users

Intel^® LGA 1200 socket: Ready for 11th Gen Intel^® Core™ processors
Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Memory overclocking: Support memory overclocking up to 5000 MHz
ASUS OptiMem II: Careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability
Ultrafast connectivity: PCIe 4.0, Intel^® 1 Gb Ethernet, rear USB 3.2 Gen 2 (Type-A &Type-C^®) and V-M.2 Key E slot for Wi-Fi

CPU	Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to www.asus.com for CPU support list. *Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	B560
Memory	DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC) /3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Multi-GPU Support	* Graphics specifications may vary between CPU types. Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.Please refer to www.intel.com for any updates. * Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
Expansion Slots	Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s)* – Intel® 11th Gen processors support PCIe 4.0 x16 – Intel®10th Gen processors support PCIe 3.0 x16 Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slots * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
Storage	Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled.
Audio	ALC887/897 – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Premium Japanese audio capacitors – Dedicated audio PCB layers ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
USB Ports	2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB:Total 7 ports 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
Operating System Support	Windows 10 64bit
Software Features	ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design AURA Sync – AURA RGB header(s) – Addressable Gen 2 RGB header(s)
Back I/O Ports	2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 2 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet port 1 x V-M.2 slot (Key E) 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function
Accessories	ASUS 5X PROTECTION III – DIGI+ VRM – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design AURA Sync – AURA RGB header(s) – Addressable Gen 2 RGB header(s)
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	microATX 24.4cm x 23.4cm
Warranty	3 Years

Anonymous	November 17, 2023
Great board for the price. Performs great with the i5 11400F. This board runs, by default, with the power limits off, with 'ASUS Performance Enhancer' enabled. With these settings, the stock 11400F cooler does not cut it. Even with my Gammaxx 400 cooler it reaches 77-78c running prime95 avx512. Fortunately you can lock the power limits to Intel's spec of 65W PL1 / 154W PL2, which would probably allow you to use the stock cooler. This board also allows you to set the PL1 and PL2 limits manually. I personally limited PL1 to 88w and left PL2 at 154w. Also undervolted the CPU by 150mV and I get close to the same performance with all limits off, but with significantly reduced power consumption and heat during heavy workloads. I don't know if this board has VRM temperature settings, but the heatsink seems to do an adequate job of keeping the temps down, even with the power limits removed on my 11400F. Running prime95 and the power limits removed, the backside of the motherboard where the VRMs are peaked at ~66c in a 23-24c room. At my manual PL1/PL2 settings, VRM temps peaked at ~50c. Overall I'm very happy with the board. While the 12400 is considerably better and more efficient; at the time of this review, the 12400F + B660 board would be almost $100 more. The 11400F + B560 board seems to be the best bang for buck right now. This or the 12100F, but I opted for the 11400 due to availability and I prefer 6 core vs 4 core
