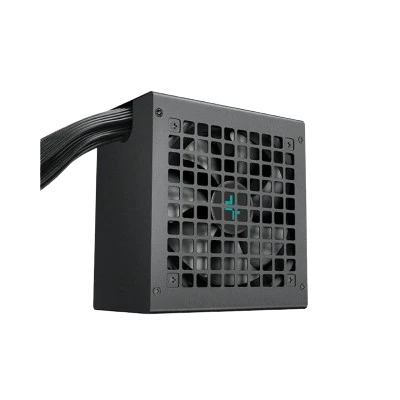

DEEPCOOL PL550D ATX 3.1 80 PLUS BRONZE SMPS (BLACK)

Name: DEEPCOOL PL550D ATX 3.1 80 PLUS BRONZE SMPS (BLACK)
SKU: TWSMPS2714
Price: 4363.00 INR
Availability: OutOfStock

0 reviews | Write a review

Availability: In Stock

₹4363

About this item : PL550DThe PL550D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.

Product Code: TWSMPS2714

Current Jc Qty: 3

Model : DEEPCOOL PL550D ATX 3.1 80 PLUS BRONZE SMPS (BLACK)

Brand : DEEPCOOL

Category : SMPS

SMPS Type : BRONZE

SMPS Wattages : 550

SMPS Modular: fully_modular

Color: Black

Available Options

Shipping Cost T&C Apply & 3 Days Return Window Available (T&C Apply)

EMI Options / Bank Transfer / Direct Upi Using QR Code. Note: (COD Unavailable)

Qty − +

DEEPCOOL PL550D ATX 3.1 80 PLUS BRONZE SMPS (BLACK)

The PL550D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.

NATIVE ATX3.1

Based on INTEL's latest ATX3.1 standard, the PL550D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 300 watts.

PREMIUM ELECTROLYTIC CAPACITORS

High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.

ROCK SOLID RELIABILITY

Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.

Model Number	DEEPCOOL PL550D ATX 3.1 80 PLUS BRONZE SMPS (BLACK)
Type	ATX12V V3.1
Product Dimensions	150×140×86mm (W x L x H)
Efficiency certification	80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II 级
Fan Size	120mm
Fan Bearing	HYB(Hydro Bearing)
Topology	Active PFC+DC to DC
Capacitors	Chinese Electrolytic Capacitors
Power Good Signal	100-150ms
Hold Up Time	≥16ms
Efficiency	≥85% Under Typical Load(50% Loading)
Protection	OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature	0 - 40℃
Regulatory	CE/FCC/CCC/RCM/EAC/ CAN ICES-003(B)/NMB-003(B) /TUV-RH
Erp Regulation	ErP 2014
Environment Protection	WEEE/中国 RoHS/Triman/P65
MTBF	100,000 Hours
EAN P/N	6933412720959 R-PL550D-FC0B-CN-V2 6933412720966 R-PL550D-FC0B-AU-V2 6933412720973 R-PL550D-FC0B-EU-V2 6933412720980 R-PL550D-FC0B-JP-V2 6933412720997 R-PL550D-FC0B-UK-V2 6933412721000 R-PL550D-FC0B-US-V2 6933412721017 R-PL550D-FC0B-IN-V2 6933412721024 R-PL550D-FC0B-WO-V2 6933412721031 R-PL550D-FC0B-BP-V2
