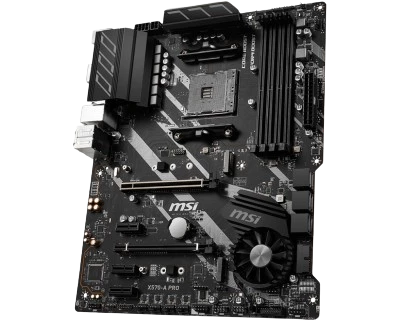

MSI X570-A PRO

1 reviews | Write a review
Availability: OutOfStock
₹15647.00

About this item : MSI Components X570-A Pro Gaming Motherboard (AMD AM4, DDR4, PCIe 4.0, SATA 6Gb/s, USB 3.2 Gen 2, HDMI, ATX)

Product Code: TWMB63
Current Jc Qty: 0
Model : MSI X570-A PRO
Brand : MSI
Category : Mother Board
Ram Support : DDR4
Product Factor : ATX
Socket : AM4
Chipset : X570
Wifi: N
Ram Slot: 4
Total Nvme Slot: 2

Available Options

− +



MSI X570-A PRO

  • Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
  • Supports 4 DIMMs, Dual Channel Memory DDR4
  • Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance.
  • Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
  • Set Core Power Free: Core Boost, 8+4 pin CPU power connectors, DDR4 Boost
  • Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
  • AMD Turbo USB 3.2 Gen2: Powered by AMD USB 3.2 Gen2 controller, ensures an uninterrupted connection with more stability and fastest USB speeds
PROCESSOR Supports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
CHIPSET AMD® X570 Chipset
MEMORY 4 DDR4 memory slots, support up to 128GB (depending on the processor)1 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Please refer to Compatibility for more information on compatible memory
SLOTS 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode Ryzen™ 4000 G-Series support PCIe 3.0×16/x0/x0, x8/x0/x8, x8/x4/x4 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) 3 x PCIe 3.0 x1 slots1 PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.The speeds may vary for different devices
ONBOARD GRAPHICS x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz1 Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3 Only support when using Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics ProcessorsMaximum shared memory of 2048 MB
MULTI-GPU Supports 2-Way AMD® CrossFire™ Technology
STORAGE AMD® X570 Chipset 4x SATA 6Gb/s ports(SATA3-SATA6) 2 x M.2 slot (Key M) M2_1 slot (from AMD® Processor) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD® X570 Chipset) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series,Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s supports 2242/ 2260/ 2280 storage devices ASMedia ASM1061 2x SATA 6Gb/s ports (SATA1, SATA2)
RAID AMD® X570 Chipset Supports RAID 0, RAID 1 and RAID 10
USB AMD® X570 Chipset 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® Processor 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output
LAN 1 x Realtek® 8111H Gigabit LAN Controller
INTERNAL CONNECTORS 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LEDs
BACK PANEL PORTS Keyboard / Mouse USB 3.2 Gen1 Type-A LAN Port HD Audio Connectors Flash BIOS Button USB 2.0 Ports HDMI Port USB 3.2 Gen2 Ports (Type-A + C) USB 3.2 Gen1 Type-A Ports Optical S/PDIF out
DIMENSIONS 12 in. x 9.6 in. (30.4 cm x 24.3 cm) ATX Form Factor
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Dt_Freak1 December 19, 2023

excellent board Im giving this board 4/5 stars. great board, however a few small niggles with it. A. the documentation is only a quick start guide and you have to go to the website to download the full manual, then the manual doesnt get you the proper orientation for the front panel headers. B. and this is not a stab at msi, but it seems almost all motherboard manufacturers arent including a cmos speaker anymore. it does alot of things right though. its Am4 and x570 chipset and doesnt break the bank at list price around 160. it can handle up to 128gb of ram. it has two usb 3.2 headers and multiple usb 2.0 headers. its got plenty of sata ports and two nvme m2 slots.
